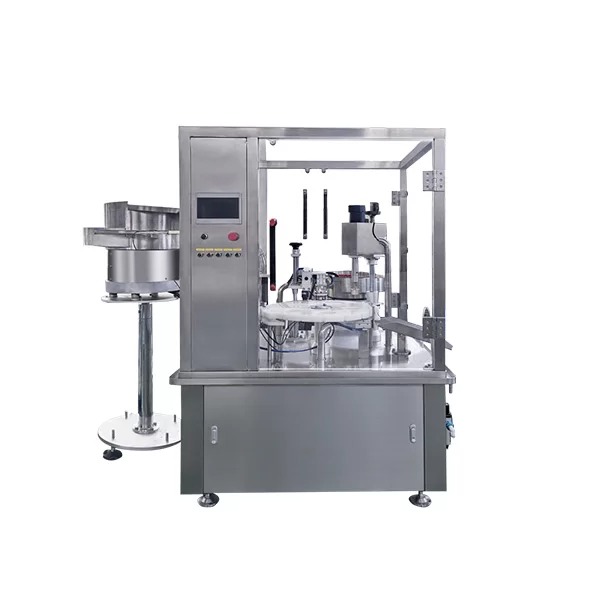

로타리 자동 병 상한 기계

주요 특징


This is our newly developed capping machine, integrates bottle inlet, cap sort, cap feed, capping, bottle outlet together. Well suitable for diversified caps, also very friendly applicable for anti-theft caps. Caps are grasped and positioned well, harmless to caps during the machine running. Fast speed of machine and high qualified rate of capping, it bears step less adjusting, can reach the international advanced level of similar products.

Electric elements use international famous brand, which ensure the machine’s quality and its service lifetime, reasonable structure, superior performance, low voice, friendly environmental.

The surface of this machine has been polished with good looking. It can be well matched with the production line. It is an ideal equipment for large and medium factories.

작동 원리


(1)This capping machine adopts rotary type for screwing caps. Caps are oriented and supplied to the cap grasping area, capping heads grasped caps send to capping area by compressed air for doing capping work, finally capper bottles are outlet by conveyor.
(2) Caps tighten can be adjusted by clutch.
(3) Bottle inlet can cap inlet are controlled synchronously
(4) Reversed caps can be ejected. (optional function)

명세서


1. Fully automatic rotary capper
2.Used for cap diameter: 20mm-80mm
3.Capping speed: 0-6000bottles/hour
4.Perfect capping

주요 기술 파라미터


아니.공연
01Suitable bottles
직경Φ40mm ~ Φ100mm
height80mm ~ 280mm
02Suitable caps
height10mm~35mm
직경Φ20mm ~ Φ80mm
03전원AC 220/380V; 50/60Hz
043 Kw
05Pneumatic (air-operated)source0.6 Mpa 깨끗하고 안정적인 압축 공기
06상한 헤드 수6 heads
07생산 능력≤6000 병 / 시간
08무게about 1200 Kg
09차원 (L × W × H)2000mm×1300mm×2400mm

빠른 세부 사항


유형 : 상한 기계
조건 : 새로운
응용 : 식품, 음료, 상품, 의료, 화학
몬 유형 : 전기
자동 등급 : 자동
Voltage: 380/220V,60/50Hz
Power: 3Kw
포장 유형 : 케이스
포장 재료 : 나무
원산지 : 상하이, 중국 (본토)
유명 상표 : NPACK
Dimension(L*W*H): 2000mmx1300mmx2400mm
무게 : 1200kg
인증 : CE
판매 후 서비스 제공 : 해외 기계류에 서비스를 제공 할 수있는 엔지니어
주요 구성 : SS304
PLC: Panasonic/ Siemens
Touch screen: Panasonic/Siemens/Schneider/Kinco
Electrical elements: Schneider
Capping head numbers: 6/Accept customized
Capping speed: 6000BPH/Accept customized
