명세서

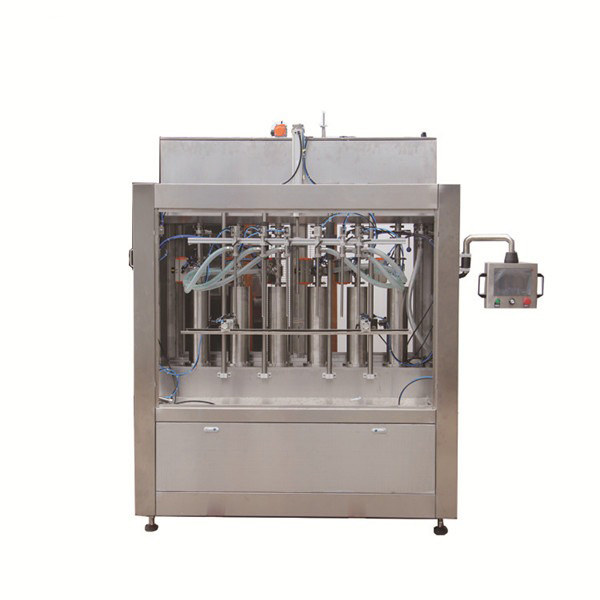

dishwashing liquid filling machine
1.With CE Certificate,Meet the GMP
2.Material:304or316Stainless Steel
3.Pay:T/T,L/C
기술
CE of EU
ISO9001
Meet the requirements of GMP
longlife of service,low mainteinance rate
Main function
The machine is advanced high precision filling machine which can complete the bottle counting, filling and capping process automaticly.
풍모
1. Compact structured, good-looking, easy to operate and highly automated.
2. components contact with material are made of stainless steel, easy to clean up.
3. Filling volume is controlled with film valves to ensure accuracy.
4. High-speed and highly accurate filling valves ensure no leakage.
5. It is equipped with high-effective cap feeding system.
Language Option
Monitor language:English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.
Major characteristics:
1.Linear type piston filling machine special designed for sticky liquid,such as detergent,shampoo,lotion,lubricant oil,edible oil,etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.
2.Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.
3. 다양한 사양 변경에 도움이되는 많은 매개 변수를 기억할 수 있으며 모든 충전량은 터치 스크린으로 조정할 수 있습니다.
정상적인 작동 액체 수준 통제, 소리 및 가벼운 경보 장치를위한 4.Liquid 통제는, 정상 상태에 액체 수준을 보장합니다; 흡입 밸브 / 펌프 제어에도 사용할 수 있습니다.
5. Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.
6. With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.
주요 기술 파라미터
| 목 | 이름 | Technical parameter |
| 01 | Machine dimension(L * W * H) | 2200mm*1400mm*2800mm |
| 02 | 기계 무게 | About 1400Kg |
| 03 | Container opening inner diameter | ≥φ35mm |
| 04 | Suitable container | 1Liter .2Liter |
| 05 | Container height | 80-350mm |
| 06 | 전원 | AC 380V;50HZ |
| 07 | 힘 | 5Kw |
| 08 | 충전 정확도 | ≤ ± 1 % |
| 09 | Air source | 0.6Mpa stable and clean compressed air |
| 11 | Number of filling nozzles | 13 |
| 12 | Conveyor height | 900mm±50mm |
| 13 | 생산 능력 | ≤3200bottles/hour (take water as test) |
| 14 | Bottle in feed direction | From left to right |
빠른 세부 사항
유형 : 충전물 기계
조건 : 새로운
Application:Chemical
포장 유형 : 병
포장 재료 : 나무
자동 등급 : 자동
몬 유형 : 압축 공기를 넣은
전압 : 220V
힘 : 3KW
Place of Origin: Shanghai. China (Mainland)
유명 상표 : NPACK
Dimension(L*W*H): 2200mm*1400mm*2800mm
Weight:1400
인증 : CE
판매 후 서비스 제공 : 해외 기계류에 서비스를 제공 할 수있는 엔지니어
재료 : SS304
PLC : 파나소닉
터치 스크린 : Panasonic
