건조한 분말 주입 충전물 기계

Brief introduction:

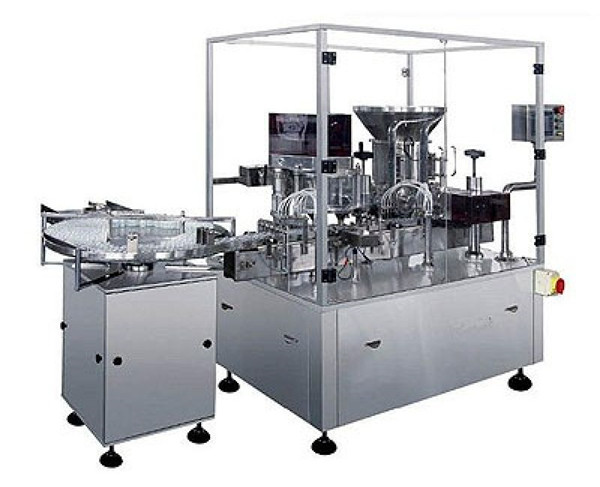

NPACK-kfs2-b type powder filling machine is a kind of screw type sterile powder filling machine our company has newly developed. It adopts two track, cylinder positioning,2 head screw filling and 2 roller stoppering. The servo motor controls the filling auger precisely.

Production capacity:

7Ml vial filling dosage 1g 160~120 bts/min

Working principle:


This machine consists of turn table, conveyor, twin track, cylinder positioning device, filling head, 2 rollers stoppering device and bottle outlet track. The filling auger is controlled by the servo motor precisely.

It use turntable and chain plate conveyor to transfer the bottles, cylinder to position the bottle,2 track filling and 2 roller stoppering device.

특성:


1. 2 long chain plate conveyor, cylinder positioning, 2-head screw filling, 2-roller stoppering, so the machine length is shortened.

2. Different types of filling auger meet requirements of powders with different fluidity

3. Touch panel control can set the filling dosage without stopping the machine

4. Speed control by inverter

5. Falling bottle auto reject; no bottle, no filling; no stoppers, auto stops; insufficient stoppers alarm

6. Auto counting function

7. CE certified, standard electric installation, safety guarantee on operation

8. Auto stop filling when filling auger touches filling nozzle and alarms

9. Easy to change the change part. easy to operate and disassemble .Easy to clean the key part.

10. Optional acrylic glass hood, laminar flow, sealed air outlet device

11. The whole machine is designed according to GMP requirements

기술적 인 매개 변수


Suitable bottle range: 7-30ml tubular or molded vial.
Power supply: 380v 50Hz
Power consumption :1kw
Compressed air pressure: 0.4-0.6Mpa qty:25-35L/min
Filling error: ≤2%
Auto stoppering ration:99.9%
Speed control by inverter
Single machine noise: ≤70dB
Weight: 800kg
Dimension: 2270*(mm)

빠른 세부 사항


유형 : 충전물 기계
조건 : 신규
신청 : 음료, 화학 제품, 필수품, 음식, 의학
Packaging Type:Cartons, Case
포장 재료 : 나무
자동 등급 : 자동
몬 유형 : 전기
전압 : 380V 50Hz
힘 : 1kw
원산지 : 상하이, 중국 (본토)
유명 상표 : NPACK
Dimension(L*W*H): 2270*1050*1500mm
Weight:800kg, 800kg
인증 : ISO CE
판매 후 서비스 제공 : 해외 기계류에 서비스를 제공 할 수있는 엔지니어
Suitable bottle range: 7-30ml tubular vial or molded vial
Power supply: 380v 50Hz
Power consumption: 1kw
Filling error: ≤2%
Auto stoppering ration: 99.9%
Single machine noise: ≤70dB
Compressed air pressure: 0.4-0.6Mpa qty:25-35L/min
Dimension: 2270x1050x1500(mm)
