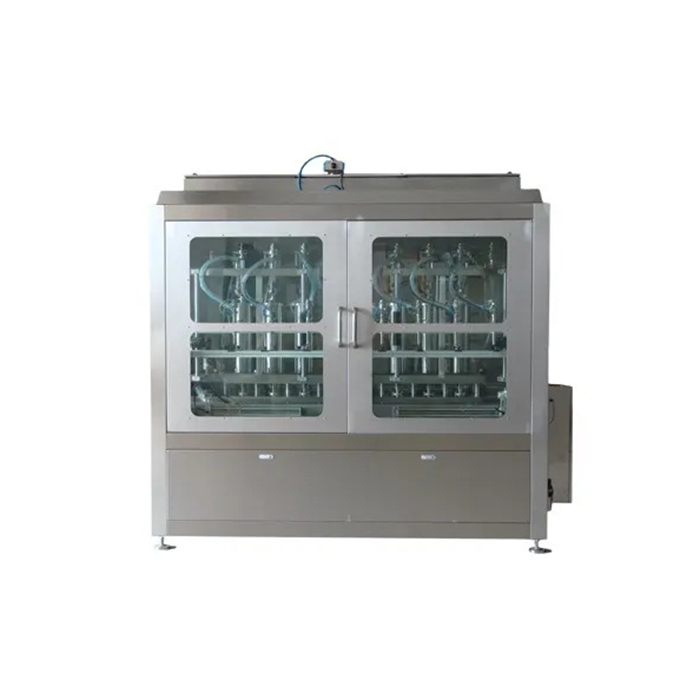

Automatic PET Bottle Filling Machine

PET 병용 3 대 1 기계는 헹굼, 충전 및 캡핑 기능을 통합합니다. 해외 첨단 기술을 기반으로하며, 물 충전 처리 요구에 따라 설계

주요 특징


1. This machine has a compact structure, completed control system, easy to operate and highly automated.

2. By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.

3. The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.

4. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

5. The machine adopts high effective cap sorting system and completely self control and protective device.

6. The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.

7. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

8. The electric components and pneumatic components are all introduced from world famous brand products.

작업 위치의 양헹굼 32, 충전물 32, 캡핑 10
생산 능력15000BPH (500ml)
공기 원의 압력0.7Mpa
공기 소비1.2m3 / 분
헹굼 수압0.2-0.25Mpa
헹굼 수용량2.5T / H
메인 모터 파워3.2kW
총 전력4.8kw
치수4250X2150X2200mm (L × W × H)
무게5200kg

우리는 또한 완전한 자동 순수한 물 병에 넣는 식물을 제공합니다

그것은 4 개의 주요 부분을 포함합니다 :

1. Plastic bottle blow molding machine
2. Water cleaning system
3. Water washing, filling, capping machine.
4. Conveyor system, labeling machine, dating machine, film wrapping machine

완전한 라인 주요 설명 :


1. The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.

2. The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.

3. We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.

4. The material is stainless steel 304, food grade much clean and safe.

5.  We provide the engineers for customer installation, training in customer's factory.

모델 및 속도 목록


모델XGF8-8-3XGF14 / 12 / 5XGF16 / 16 / 5XGF24 / 24 / 8XGF32 / 32 / 10
손 씻기814162432
필링 밸브812162432
상한 손355810
적합한 PET / 유리 병 (150ml ~ 2000ml)
용량 (속도)
500ml 기준
2000 년5000BPH7000BPH12000 년15000 년

전기 부품 브랜드 공급 업체


주요 구성설명 공급 업체
PLC미쓰비시 (일본), 지멘스 (독일)
터치 스크린와인 뷰 (대만)
주파수 변환기미쓰비시 (일본), 지멘스 (독일)
에어 스위치슈나이더 (프랑스)
파쇄기지멘스 (독일)
접촉기지멘스 (독일)
광전 스위치오므론 (일본)

빠른 세부 사항


유형 : 충전물 기계
조건 : 신규
응용 : 음료, 화학, 의료
포장 유형 : 병
포장 재료 : 플라스틱
자동 등급 : 자동
구동 장치 형 : 전기
전압 : 380V / 220V
힘 : 4.8KW
원산지 : 상하이, 중국 (본토)
유명 상표 : NPACK
차원 (L * W * H) : 4250X2150X2200mm
무게 : 5200KGS
인증 : CE, ISO, SGS
판매 후 서비스 제공 : 해외 기계류에 서비스를 제공 할 수있는 엔지니어
공장 : LINKS MACHINERY
병 크기 : 150ml ~ 2000ml
병 목 직경 : 15-55mm
병 재질 : 플라스틱 / 유리
속도 (500ml 보틀 기준) : 15000B / H
제어 시스템 : PLC 터치 스크린 (MITSUBISHI JAPAN)
캡 : 스크류 / 프레스 캡
캡 엘리베이터 : 있음
충전 액 : 미네랄 / 순수
