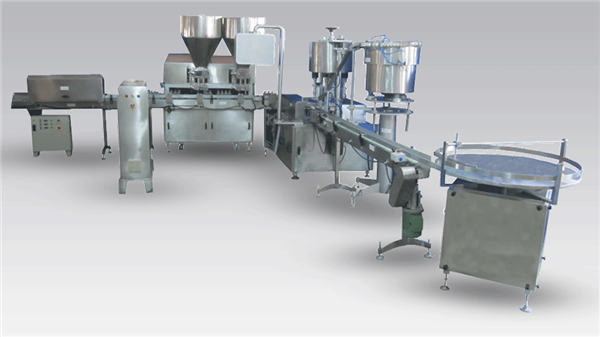

생산 라인 모자를 씌우고 레테르를 붙이기를위한 자동적 인 액체 맥주 병 충전물 기계

This Model is special for Filling Production Line, and it is simple and reasonable in design, high in accuracy and easy in operation. Suitable for filling liquid in the industries of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades. With no need for power supply, the machine is safe and with the personalized design, can meet the modern enterprises' requirements. This machine is the semi-automatic double piston liquid filling machine, working under the state without electricity, it is safer to operate. This machine has two filling heads in-phase, improving the work efficiency. And the pneumatic part adopts the pneumatic components of Germany FESTO and Taiwan's AirTac. The part contacting materials is made of 316L stainless steel. With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling accuracy. Filling head adopts anti-leakage, anti-pull and with diving filling device.

응용


The fully automatic filling and capping machine is liquid filling line which is designed to fill bottles and jars with products of various viscosity, range from water thin liquids to thick creams. Widely used in cosmetic, food, pharmaceutical, oil and specialty industries. These inline piston filling machines can be option with different fill heads for meet different production capacity, variable speed drive conveyor, adjustable stainless steel frame, easy to operate PLC control panel.

특색


1, 304 Stainless steel heavy duty stainless steel welded C frame.
2, All parts contact with material is SUS316, sanitary, Teflon, Viton and hoses per your requirements.
3, Real time adjustability.
4, No bottle no fill, PLC control
5, Accurate filling volume, within ±1% and a total bottle counter.
6, Easy to maintain, no special tools are required.
7, Special seals or hoses by order.
8, Blocked nozzles for products that tend to string and drip.
9, 발포 제품의 상향식 충전 노즐.
10, Bottle mouth localizer.
11, The filling head can also be added to suit your special need.
The automatic filling line links the capping machine, coding machine, labeling machine, sleeving shrink machine and shrink tunnel to the fully automatic filling line.

Technical specifications


기계 모델NPACK-100-6NPACK-300-6NPACK-500-6NPACK-1000-6NPACK-2500-6NPACK-5000-6
충전 범위(10-100ml)×6(30-300ml)×6(50-500ml)×6(100-1000ml)×6(250-2500ml)×6(500-5000ml)×6
기압4-6kg/cm24-6kg/cm24-6kg/cm25-8kg/cm25-8kg/cm25-8kg/cm2
충전 속도30-50bottles/min30-50bottles/min30-50bottles/min30-50bottles/min30-50bottles/min20-40bottles/min
충전 정밀도Liquid ≤±1%, paste≤±2%Liquid ≤±1%, paste≤±2%Liquid ≤±1%, paste≤±2%Liquid ≤±1%, paste≤±2%Liquid ≤±1%, paste≤±2%Liquid ≤±1%, paste≤±2%

빠른 세부 사항


유형 : 충전물 기계
조건 : 새로운
응용 : 화학, 식품, 의료
포장 유형 : 병
포장 재료 : 나무
자동 등급 : 자동
구동 방식 : 압축 공기를 넣은
전압 : 220V / 50HZ / 60HZ
힘 : 1.5KW
원산지 : 상하이, 중국 (본토)
유명 상표 : NPACK
Dimension(L*W*H): 2000*550*1800mm
Weight: 450 Kg
인증 : ISO-900
판매 후 서비스 제공 : 해외 기계류에 서비스를 제공 할 수있는 엔지니어
충전 속도 : 10-35n / min (예 : 물 섭취)
Filling range: 10-5000ml
기압 : 0.4 ~ 0.6mpa
충전 오류 : ± 1 %
