자동 아이스크림 컵 충전 씰링 기계

/ 충전물 기계 / 크림 충전물 기계 / 자동 아이스크림 컵 충전 씰링 기계

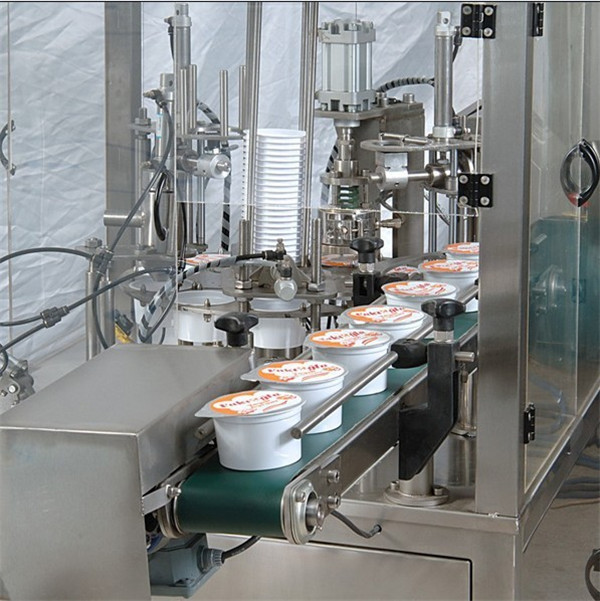

Automatic Ice Cream Cup Filling Machine

1. Brief Introduction.


Suitable for Nespresso/Lavazza Blue coffee capsules/K cup coffee capsules.
Suitable for pre-cut lid sealing & roll film sealing.
Stainless steel.
Adjustable filling time & volume.
Filling precisely and sealing cups perfectly.
Changeable moulds.
No cup no filling.
Compact coffee tight after filling.
Nitrogen flushing into the cup.
Strong glass cover to avoid dust.
Easy to clean maintain and install.
Movable and small, is the best choice for new startups in single serve coffee line.

cup filling machine

can automatically complete delivery cup, falling cup, capsule filling, mechanical hand suck film, sealing, hand out the cups and other mechanical functions.

Features are compact structure, high automation, and easy to operate, stable performance, simple maintenance,

and high production efficiency and 24hour continuous work. Components(e.g. Stainless steel aluminum copper and other corrosion-resistant) are in line with Food Hygiene Law. It is reliable and ideal for single serve coffee capsule making business.

2. Parameters.


상품명cup filling machine
모델NC-10   cup filling machine
생산 능력6000-8000 cups/h
Filling Heads10 Filling Heads

충전 범위

5-50g (Can be adjustable)
Accurate1%-2%

공기 소비량

0.7M3/ 분
Temperature0-300°c
Dimesion3400*850*1600mm
무게1000kg

3. Key bebefits.


a. Automatic Nespresso/K cups/Lavazza blues capsules etc..

Automatic Cup Ice creams Filling Sealing Machine

Automatic placing the stackable cups/capsules.
Can be adapted to other cups/capsules formats.
Variours types of pre-formed containers(PET, PP, PS, aluminum, paper cup...)
Can be upgraded to 2, 3, 4, 5, trackers according to different capacity.

b. Automatic Filling.

Automatic Cup Ice creams Filling Sealing Machine

Auger filling(other filling methods if you need).
Filling weight is precise and under control(+-0.25% to 0.5%).
The filling heads can be upgraded to 2, 3, 4, 5 for higher work-rate

c. Automatic pre-cut lids falling (roll film releasing for your option).

Automatic Cup Ice creams Filling Sealing Machine

Can be adapted to various shapes of lids.
Effectively avoid lids sticking together while sucking one lid.
Roll film releasing for your option.(another sealing type)
Can be upgraded to 2, 3, 4, 5 for higher work-rate.

d. High-quality heat-sealing.
Automatic Cup Ice creams Filling Sealing Machine

Use copper sealing head.(high termperature resistant)
Sealing temperature can be adjusted to adapt to different K cups/Lavazza Blues/Nespresso capsules and lids material.
Conduction sealing for plastic, cardboard, or aluminum comtainers.



빠른 세부 사항


유형 : 충전물 기계
조건 : 새로운
신청 : 음료, 음식
Packaging Type: Capsule, cup
Packaging Material: Plastic, Aluminum
자동 등급 : 자동
구동 방식 : 압축 공기를 넣은
전압 : 220V / 380V
힘 : 5KW
원산지 : 상하이, 중국 (본토)
유명 상표 : NPACK
Dimension(L*W*H): 3400*850*1600mm
Weight: 780kg
Certification: CE Certificate ISO9001
판매 후 서비스 제공 : 해외 기계류에 서비스를 제공 할 수있는 엔지니어
Product name: cup filling machine
Filling Head: 10 Heads
Production Capacity: 6000-8000 cups/H
Filling Range: 5-50g (Can be adjustable)
Accurate: +/-0.2g
Air Consumption: 0.7M3/M
Temperature: 0-300
Net Weight: 1000 kg
Dimension: 3400*850*1600mm
