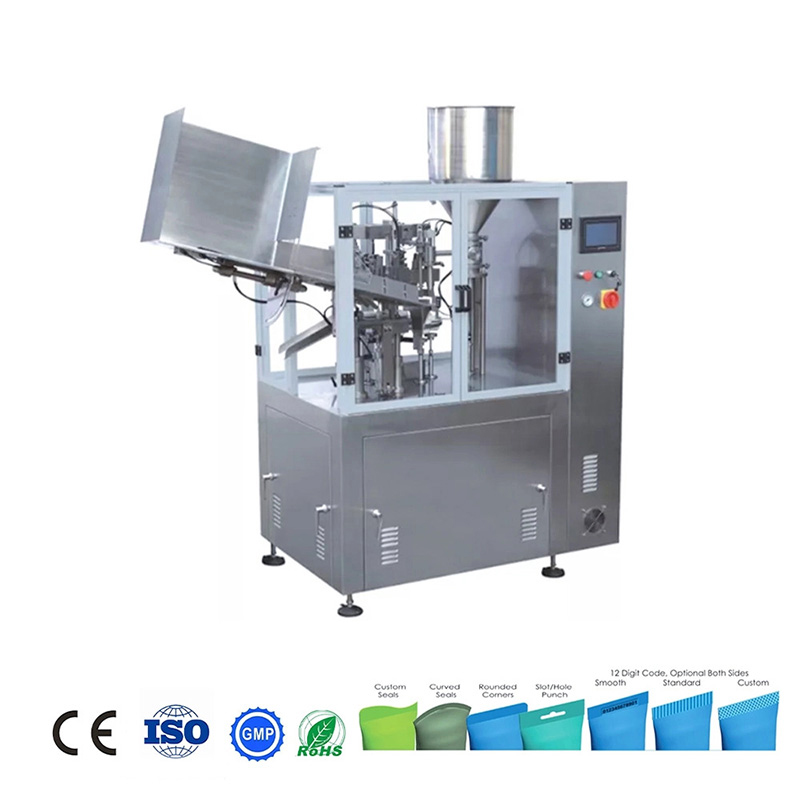

크림 튜브 작성 포장기 제조 업체

/ 충전물 기계 / 크림 충전물 기계 / 크림 튜브 작성 포장기 제조 업체

크림 충전물 기계 제조업체

Product Description:


This machine is high technical equipment which successfully developed and designed by introducing into advanced overseas technology and integrating GMP requirement, with features of fair structure, full function, easy operation, accurate filling, stable running, as well as low noise. It adopt with PLC controller, automatically operating from liquid or high velocity material filling till batch number printing (include manufacture date), it's an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries, comply with the standard of GMP.

풍모:


1. High grade operation screen with LCD display PLC and buttons, easy operation and more humanization By steplees speed adjust, parameter set, out put count, pressure index and failure display.

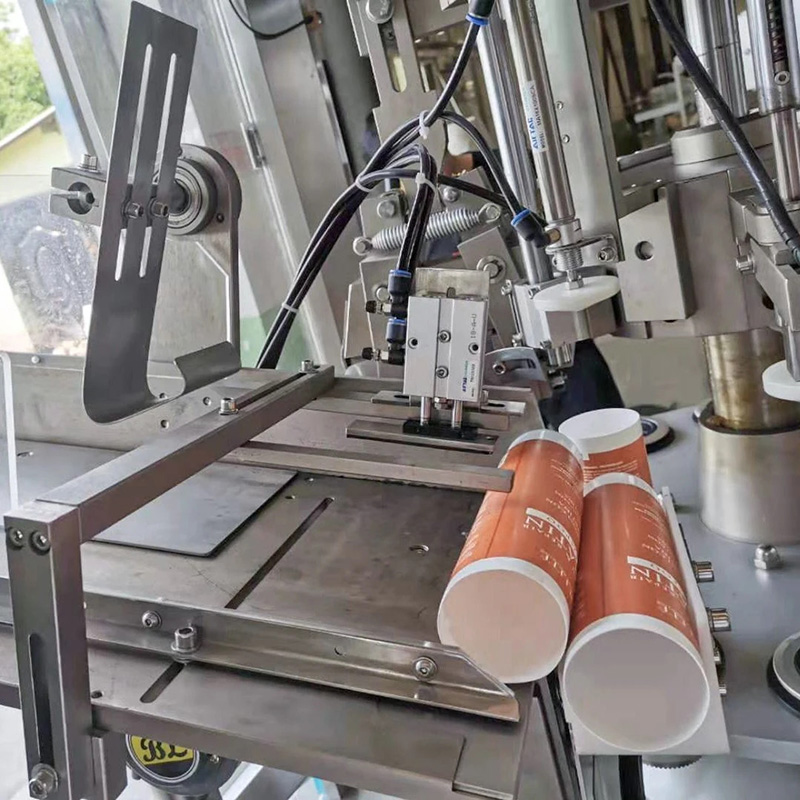

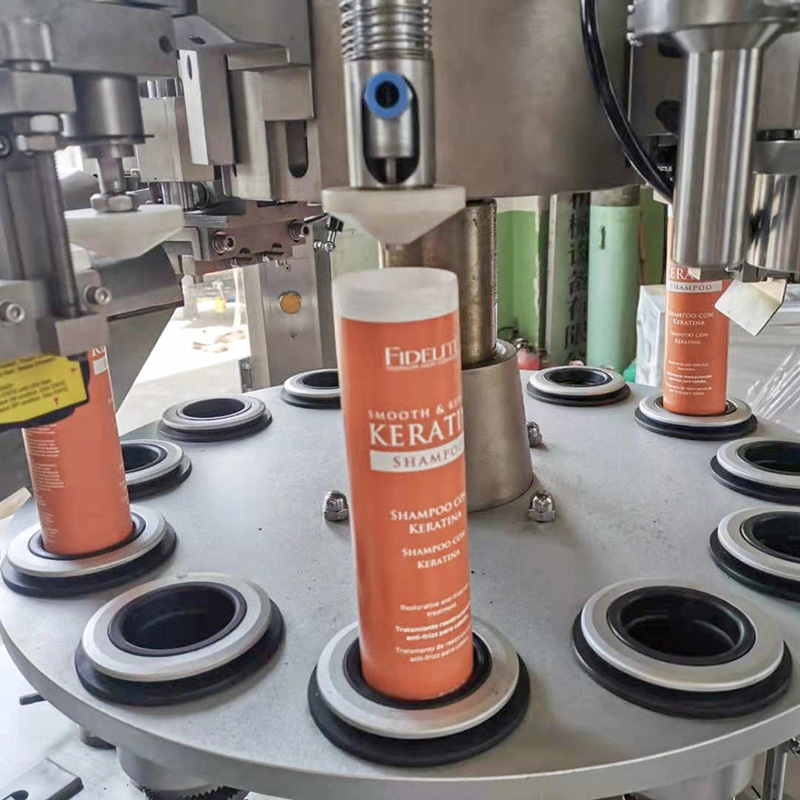

2. Automatically executing tube supply, photoelectron register, inert gas filling(optional), material filling and sealing, batch number printing, final products output.
3. High precision photoelectron register reduced the chromatic aberration scope.
4. Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variety products producing).
5. Mechanical, photoelectron, electric, pneumatic integrative controlling, reaches no tube no filling function; Waiting if tube error position or pressure too low, automatic stop machine if open the protective door.

모델GF-400 AGF-400 B
Tube materialMetal tube, ALU tubePlastic tube, Compound tube
튜브 직경10-42 mm10-60 mm
튜브 길이50-250(customizable)50-250(customizable)
충전량5-500ml/branch(Adjustable)5-800ml/branch(Adjustable)
충전 정확도≤ ± 1 %≤ ± 1 %
속도3-10 r/min2.5-7 r/min
Product capacity30-60 Pc/min30-60 Pc/min
급기0.55-0.65mpa0.55-0.65mpa
모터 파워2kw(380V/ 220V 50Hz)2kw(380V/ 220V 50Hz)
Heat sealing power3KW3KW
Overall dimension2620×1020×1980 mm2620×1020×1980 mm
기계 무게1100 kg1100 kg



기본 정보


Application: Paste
Forming Species: Bottle Forming
몬 유형 : 전기
Packaging: Soft Tube
Motor Power: 2kw(380V/ 220V 50Hz)
Overall Dimension: 2620×1020×1980mm
상표 : NPACK
원산지 : 상하이, 중국

자동 등급 : 자동
Type: Filling and Sealing Machine
Forming Function: Filling
물자 유형 : Paste
Product Capacity: 30-60 PC/Min
열 바다 표범 어업 힘 : 3kw
Machine Weight: 1100kg
사양 : CE
