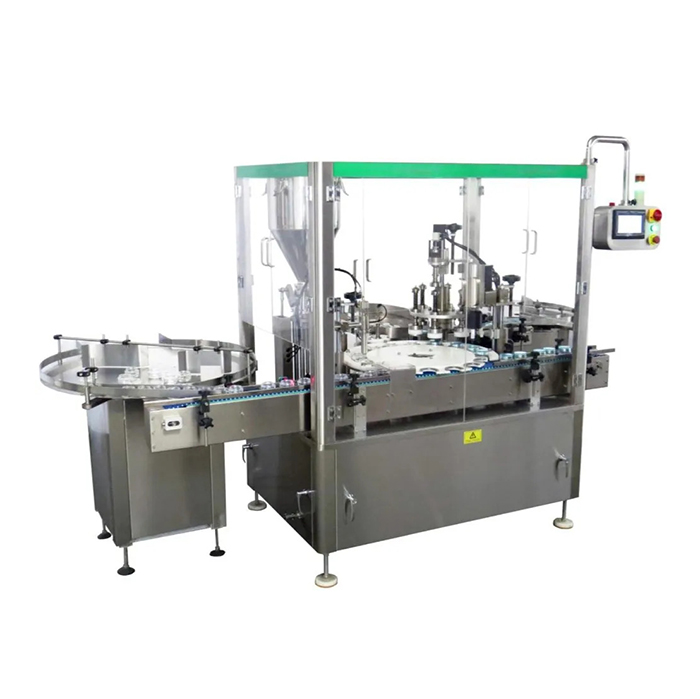

로타리 화장품 필링 및 캡핑 기계

/ 충전물 기계 / Monoblock Filling Machine / 로타리 화장품 필링 및 캡핑 기계

로타리 화장품 필링 및 캡핑 기계

명세서


A rotary cosmetic filling and capping machine is a type of automated equipment used for filling and capping cosmetic products such as creams, lotions, and serums. The machine is designed to improve the efficiency and accuracy of the filling and capping process, allowing for higher production rates and reduced labor costs.

The machine works by using a rotating carousel that moves the containers through various stages of the filling and capping process. At the filling station, the product is dispensed into the container using a filling nozzle, which is controlled by a sensor to ensure accurate fill levels. Once filled, the containers are moved to the capping station, where they are sealed with a cap or a pump dispenser.

The rotary cosmetic filling and capping machine can be configured to handle different types of containers, such as jars, bottles, and tubes, and can be adjusted to accommodate different product viscosities and fill volumes. The machine can also be equipped with additional features such as label applicators, induction sealers, and conveyors to further streamline the packaging process.

Overall, the rotary cosmetic filling and capping machine offers a reliable and efficient solution for cosmetic manufacturers looking to increase their production capacity and improve the consistency and quality of their products.

  • 경쟁력있는 공장 가격
  • 높은 생산 표준
  • 쉬운 조작

소개


100,000 클래스 면적에서 나오는 진공 병은 진공 포장이 필요하지 않으므로 세탁기에 직접 넣을 수 있으므로 병 턴테이블에서 충전 기계까지 생산 공정이 이루어집니다.

우리는 충전 공정을 위해 영국에서 수입하고 일본에서 수입하는 SANYO 모터로 구동되는 WATSON MARLOW의 연동 펌프를 사용하고 수입 튜브를 사용하여 액체 용액을 펌프에 연결합니다. 높은 정확성과 쉬운 조정이 특징입니다. 또한 터치 스크린과 Mitsubishi의 PLC를 사용하므로 모든 조정 및 크기 변경이 쉽습니다. 실린더와 센서도 수입되어 내구성이 뛰어나고 민감합니다.

주요 부품 스토퍼 섹션은 다른 회사와 다릅니다. 다른 회사의 기계에서 스토퍼는 스토퍼 슈트를 통해 실린더로 떨어지며 하나의 기계 구성 요소를 추가하여 더 나은 조준과보다 정확한 움직임을 만듭니다. 중력 원리를 채택하고, 기계적 구조가 거의 없으며, 안정적인 기능을 설계하십시오.

캡핑 헤드에는 3 세대 캡핑 헤드를 사용합니다. 마지막 세대에서 업데이트되었습니다. 신원 비틀림 원리는 캡핑에 사용됩니다. 힘이 충분할 때 자동 슬라이드가 될 수 있습니다. 따라서 뚜껑과 병을 다칠 수 없었고 병도 뚜껑을 덮을 수 없습니다.

병이없는 충전 중지, 병이없는 공급 스토퍼 없음, 스토퍼가없는 공급 캡 없음의 전체 기계 기능. 그것은 하나의 기계에 충전, 스토퍼 및 스크류 캡핑을 결합하여 구조가 작고 경제적입니다.

매개 변수


처리량 : 40-120 병 / 분

충전 정확도 : ± 1 %

소비 전력 : 1.2KW, 380V 50HZ

압축 공기 : 15 m³ / h, 0.4 -0.6 MPa

무게 : 600kg

차원 : 2000x1400x1700 mm

빠른 세부 사항


유형 : 충전물 기계
조건 : 새로운
응용 : 의료
포장 유형 : 병
포장 재료 : 나무
자동 등급 : 자동
구동 방식 : 압축 공기를 넣은
전압 : 380V
힘 : 1.5Kw
원산지 : 상하이, 중국 (본토)
유명 상표 : NPACK
차원 (L * W * H) : L2000 W1000 H1700mm
무게 : 500kg
인증 : CE
판매 후 서비스 제공 : 해외 기계류에 서비스를 제공 할 수있는 엔지니어
처리량 : 40-120 병 / 분
